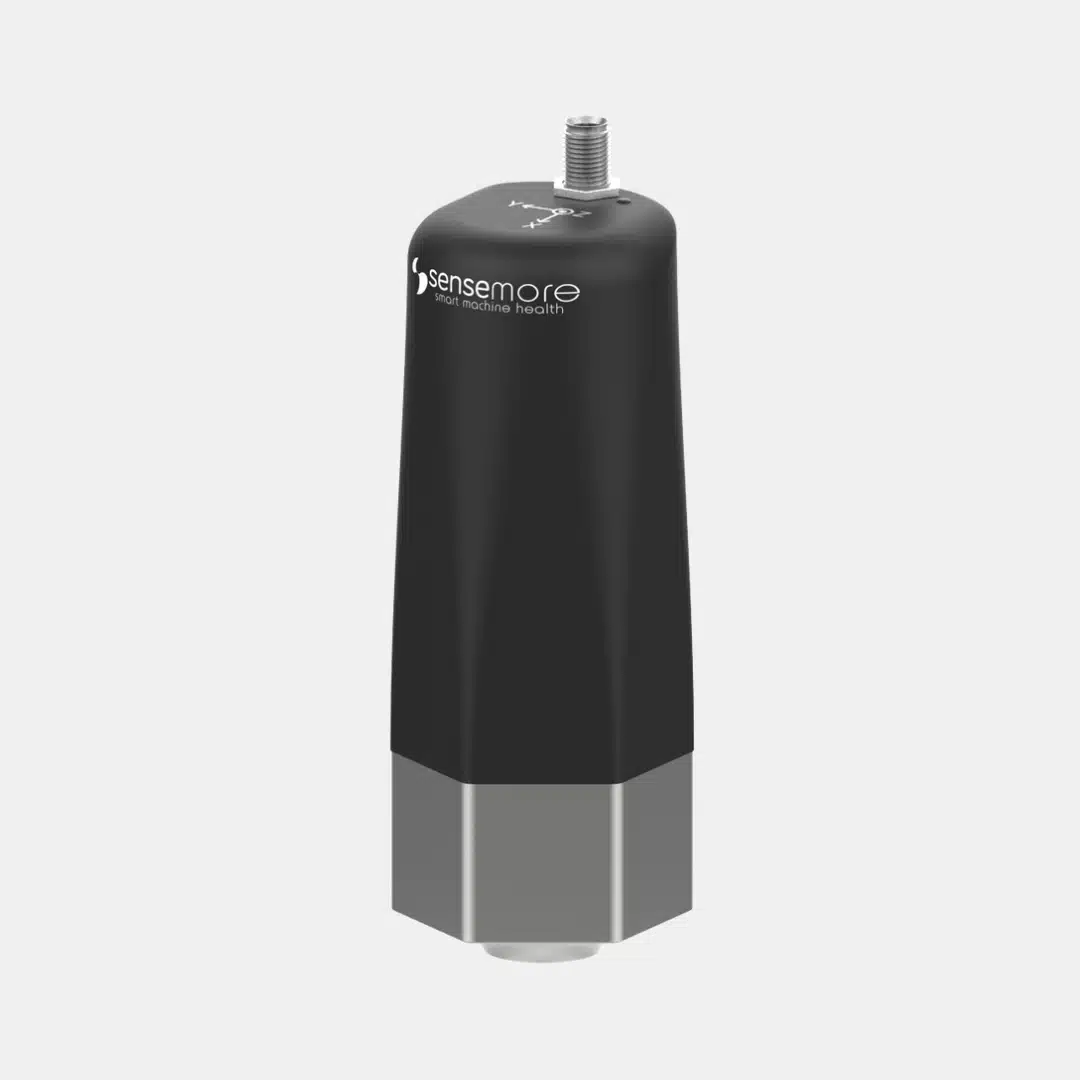

Infinity PRO
$1,000 exc. TAX
Battery Powered Wireless Accelerometer, Magnetometer, and Thermometer
- Free shipping on all orders over $500
- 30 days easy returns
- VAT excluded
- Secured online payment
- Customer support
- 2-Year Warranty
Pro Energy, Lower Power Consumption
INFINITY PRO is a plug&play BLE communicated IIoT device that includes accelerometer, magnetometer, and thermometer. INFINITY PRO has energy harvesting capability from current sources like solar cells or thermo-electric generators. Highly rigid structure and durability in harsh environments provide high-quality vibration measurements. Magnetometer is synchronized with the accelerometer to determine rotation speed and ensure a better understanding of machine health. BLE communication enables data acquisition with a smartphone.
The Best Choice for
Route-Based Measurement
Energy Harvesting
Infinity PRO has an internal high efficient energy harvesting chip to charge its battery from current sources like a solar cell or a thermoelectric generator.
External Sensor Options
Infinity PRO also has an ADC input to sample external analog sensors.
Easy Installation
Infinity PRO has Unf 1/4″ 28 thread for stud mounting or adhesive mounting via a mounting pad.
Route-based Measurements
Infinity PRO communicates over BLE 5.1 so it is usable with the Sensemore Mobile App directly without any other device to get route-based measurements.
Route-Based Measurement with Mobile App
Infinity communicates over BLE 5.1 so it is usable with the Sensemore Mobile App directly without any other device to get route-based measurements. Time-waveform and spectrum graphs can be easily inspected instantly. Taken measurements can be uploaded to the Sensemore LAKE platform to store and inspect later.
Box inside
Infinity PRO
Mounting Pad
Charger
User Guide
| Accelerometer | |
|---|---|
| Number of Axis | Tri-axial |
| Frequency Range | DC to 6 kHz |
| Sampling Rate | 26 kHz |
| Dynamic Range | ±16 g |
| Magnetometer | |
|---|---|
| Number of Axis | Tri-axial |
| Magnetic Flux Density Sensing | ±160 mT |
| Flux Resolution | 65 µT |
| Thermometer | |
|---|---|
| Sensitivity | ± 0.5° |
| Sensing Range | -40 °C to +125 °C |
| Others | |
|---|---|
| Size (D*H) | 30.5 mm * 85 mm |
| Operating Temperature | -40 °C to +80 °C |
| Communication Type | Bluetooth (Low Energy 5.1) |
| Power | Rechargeable Battery |
| Battery Life | Up to 2 Years |
Infinity PRO has more battery life than Infinity and it has stud mounting method.
The Infinity Pro accelerometer can be securely attached to the machinery via its magnet and with adhesive. It can then measure and transmit vibration data wirelessly to a monitoring system for analysis and condition monitoring. It can be used for route-based measurements via Sensemore Mobile App to collect and export data, and also with Sensemore Platform access (See Infinity Demokit to use Infinity with Sensemore Platform)
The Infinity PRO accelerometer can be integrated into your existing IoT system using the provided APIs and documentation. It supports various communication protocols and offers data streaming capabilities, enabling seamless integration with other devices and data analysis platforms. We provide integration documents in code.sensemore.io as open source.
The Infinity PRO accelerometer is factory-calibrated and ready to use out of the box. However, if precise calibration is required for your specific application, you can refer to the user manual for detailed instructions on calibration procedures.
Infinity has IP68-grade protection.
