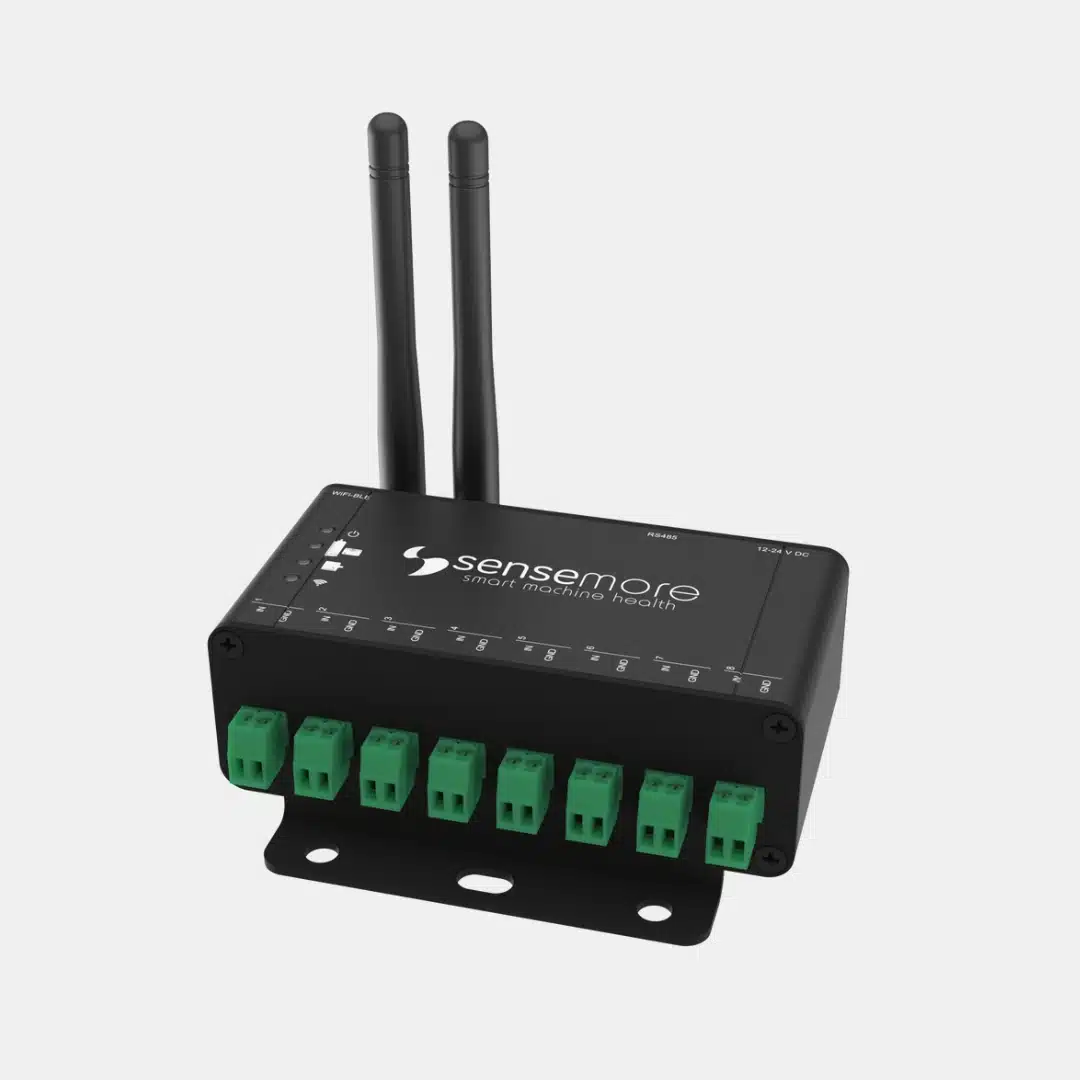

Senseway Pro
$900 exc. TAX
Gateway Device for Sensemore Sensors
- Free shipping on all orders over $500
- 30 days easy returns
- VAT excluded
- Secured online payment
- Customer support
- 2-Year Warranty
Fast & Secure Communication Between Sensors & Servers
Senseway Pro is a gateway device for Sensemore sensors. The Tachometer feature supports sensor measurements with the rotation speed of the equipment. The measurement triggering feature ensures that varying process needs are met.
Usable as a Trigger or Tachometer
8-Channel External Inputs
You can use Senseway as a trigger and tachometer via its 8-channel external inputs.
Perfect for Perpetual Measurements
With its trigger option, only getting measurements as soon as your machine is running, perpetual measurements are taken from stop-and-go equipment.
Monitoring the Rotational Speed
By tachometers, you can detect changes in speed or vibration that may indicate a problem before they become major issues.
Easy Installation
While offering HTTP and MQTT integrations, It can be easily managed via configuration WEB UI.
Box inside
Senseway Pro
24VDC Adapter
x2 Antenna
User Guide
| Bluetooth | |
|---|---|
| Type | Low Energy 5.1 |
| Frequency Band | 2.4 GHz |
| Antenna | 3 dBi Single Antenna, Omni Directional |
| WiFi | |
|---|---|
| Type | 802.11 b/g/n |
| Frequency Band | 2.4 GHz |
| Antenna | 3 dBi Single Antenna, Omni Directional |
| Ethernet | |
|---|---|
| Network Performance | Up to 15Mbps |
| Data Protocols | TCP/IP, MAC, PHY |
| LoRa | |
|---|---|
| Working Frequency | 868MHz |
| Transmitting Power | 20 dBm |
| Power | |
|---|---|
| DC Input | 12 – 24V DC |
| External Input | |
|---|---|
| Input Options | Trigger, Tachometer |
| Input Voltage High Logic Level | 5-24V DC |
Senseway PRO can manage both BLE, LoRa, and Wired Sensemore devices. Senseway PRO also provides ethernet connection to increase network quality.
Yes, As well as all Sensemore IoT devices, Gateway provides MQTT integration option. MQTT configuration can be updated to integrate Gateway to 3rd party platform. More can be found at https://code.sensemore.io
Senseway PRO Gateway can manage 10 devices at the same time.
Does the Senseway Pro Gateway support over-the-air (OTA) firmware updates for software enhancements?
Yes, As well as all Sensemore IoT devices, Gateway provides OTA updates over MQTT and web configuration page.
