Wired PRO

$600 exc. TAX

WiFi Connected Accelerometer, Magnetometer, and Thermometer



  • Free shipping on all orders over $500
  • 30 days easy returns
  • VAT excluded
  • Secured online payment
  • Customer support
  • 2-Year Warranty

Real-time Smart Measurement

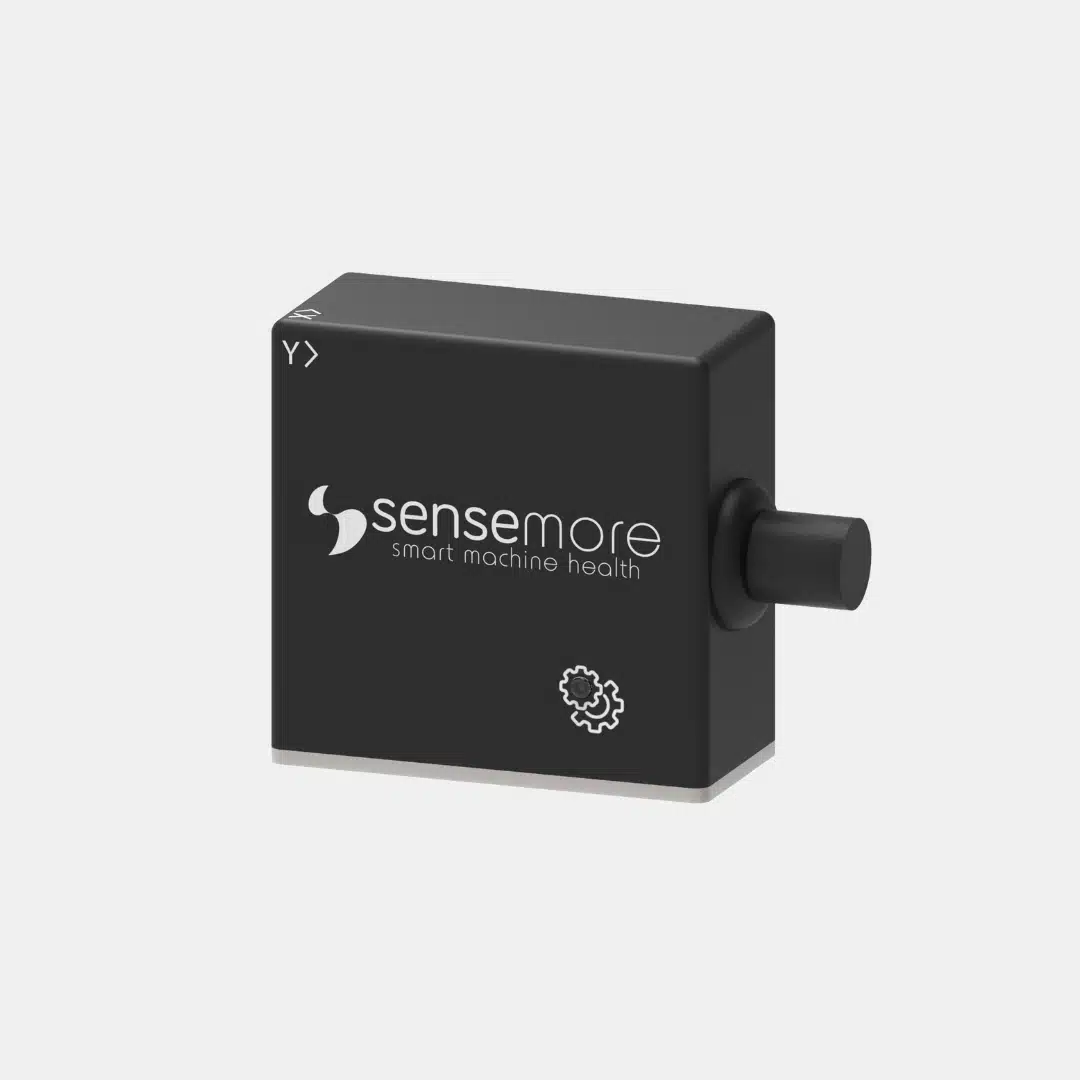

WIRED PRO is a plug&play Wifi connected IIoT device that includes accelerometer, magnetometer and thermometer. It also has RS485 communication capability over its cable if there is no WiFi connection at the sensor location. Highly rigid structure and stud mounting option provide high-quality vibration measurements. Magnetometer is synchronized with the accelerometer to determine rotation speed and ensure a better understanding of machine health.

Download Datasheet
Sensemore Wired

The Best Choice for
High-temperature Resistance Needs.

Energy Harvesting

Infinity has an internal high efficient energy harvesting chip to charge its battery from current sources like a solar cell or a thermoelectric generator.

External Sensor Options

Infinity also has an ADC input to sample external analog sensors.

Easy Installation

Infinity includes magnets inside for easy mounting for temporary mounting. Also, adhesive mounting can be applied for permanent mounting.

Route-based Measurements

Infinity communicates over BLE 5.1 so it is usable with the Sensemore Mobile App directly without any other device to get route-based measurements.

Max. 10 WIRED PRO for a SENSEWAY

SENSEWAY connects to WIRED PROs using custom-sized RS485 cables and a T connector. Up to 10 WIRED PROs can be connected to SENSEWAY within a total range of 100m of RS485 cable.

Or Transfer Data without SENSEWAY

WIRED PRO connects directly to the network via WiFi. All it needs is supplying DC voltage.

Box inside

Wired PRO

Mounting Pad

User Guide

Accelerometer
Number of Axis Tri-axial
Frequency Range DC to 6 kHz
Sampling Rate 26 kHz
Dynamic Range ±16 g

Magnetometer
Number of Axis Tri-axial
Magnetic Flux Density Sensing  ±160 mT
Flux Resolution 65 µT

Thermometer
Sensitivity ± 0.5°
Sensing Range -40 °C to +125 °C

Others
Size (L*W*H) 30 mm * 16 mm * 31 mm
Operating Temperature -40 °C to +105 °C
Communication Type RS485 Wire/WiFi 2.4 GHz
Power Wired (5 – 36V)
Wifi Frequency Band 2.4 GHz

The Wired PRO accelerometer with RS485 connectivity offers benefits such as long-distance data transmission, reliable communication in noisy environments, and the ability to connect multiple accelerometers in a daisy-chain configuration for simplified wiring and installation.

Yes. You can use multiple Wired Pro at the same time by using T-Connectors with RS485 line

The Wired Pro accelerometer can be securely attached to the machinery with adhesive. (See Infinity Demokit to use Infinity with Sensemore Platform)

The Wired PRO accelerometer can be integrated into your existing IoT system using the provided APIs and documentation. It supports various communication protocols and offers data streaming capabilities, enabling seamless integration with other devices and data analysis platforms. We provide integration documents in code.sensemore.io as open source.

Wired PRO includes 3-axes acceloremeter, temperature and 3D magnetometer sensors.

Wired PRO has IP68-grade protection.

Yes, Wired Pro can connect WIFI and send data.
