Wired Pro Integration Documentation

Wired Pro Operational Modes

❗️ Wired Pro is a versatile IoT data acquisition device with two distinct operational modes:

1. RS485 mode:

In this mode, Wired Pro connects to Senseway (or a third party gateway) over an RS485 cable. It is controlled by the gateway and operates as a 3-axis accelerometer and temperature sensor. The wire protocol is documented in the RS485 Integration section below. For the Senseway gateway itself, refer to the Senseway Integration Documentation.

2. Wi-Fi mode:

In Wi-Fi mode, Wired Pro functions as its own gateway, managing its sensors independently. Sections MQTT Integration and HTTP Integration describe this mode.

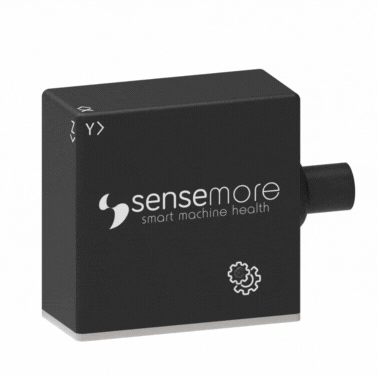

Wired Pro is a combined gateway and sensor array capable of capturing 3-axis acceleration and temperature readings. It can process measurements, apply measurement strategies, and upload data to the cloud. Powered by a 5-24V DC input, Wired Pro operates without the need for charging.

Before starting to speak about Wired Pro system integration, configure your Wired Pro’s MQTT, NTP and HTTP settings.

Accessing Configuration Page

Shortly after the Wired Pro is plugged in, it broadcasts a Wi-Fi access point network with the WiredPro-CA:B8:41:XX:XX:XX SSID. Use the default password to connect to the AP. Your device will launch the configuration page in a captive portal. If your device does not automatically launch the captive portal, navigate to http://192.168.4.1 in your default browser. Once Wired Pro is connected to a network via Wi-Fi, its configuration page can be accessed through its local IP address from the same network. The local IP address is displayed on the home tab of the configuration page and is also shown in the MQTT information message.

Connectivity

Wi-Fi

Wired Pro supports Wi-Fi for wireless network connections.

NTP

Time information is used in the measurement messages sent by Wired Pro, so time synchronization is required. For OnPremise or private installations, the default NTP server can be modified from the Wired Pro configuration page under Settings > NTP, or over the /sntp endpoint.

❗️ The value is an NTP server hostname, not a URL. Do not prefix it with a scheme and do not append a path. pool.ntp.org is valid, http://pool.ntp.org/ is not and will prevent the device from synchronizing its clock.

Default: pool.ntp.org

MQTT

Wired Pro needs MQTT / TLS configuration and supports a variety of authentication mechanisms including: plaintext MQTT, MQTTs with and without password, and MQTTs with client certificate.The MQTT broker server to be used must support TLS and provide the following for certificate-based connections:

• MQTT endpoint (mqtts: //my-mqtt-broker.server: 8883)
• CA (CA certificate)
• Client Cert (a created and signed certificate from CA)
• Client Key (private key of the certificate generated through the CA)

Required certificates and endpoint information are defined at Settings > MQTT in the Wired Pro configuration page. Wired Pro uses these certificates for future MQTT connections.

Details https://www.hivemq.com/blog/mqtt-security-fundamentals-tls-ssl/

HTTP

Wired Pro can be controlled over HTTP, allowing for configuration modifications and measurement actions. Accessing HTTP endpoints requires an initial login, after which the received token must be used for subsequent communications. Detailed information is available in the HTTP Integration section.

RS485

In RS485 mode Wired Pro acts as a slave on a half-duplex RS485 bus and speaks the EasyCom frame protocol. See RS485 Integration.

Measurement Strategy

❗️ Changed in 3.1.x. Earlier firmware exposed a fixed-period scheduler (scheduler_period). That field no longer exists. Wired Pro now runs a smart measurement strategy: it continuously monitors a lightweight RMS value and triggers a full measurement only when the vibration level actually changes, with a guaranteed heartbeat so data never stops flowing.

A full measurement is triggered when any of the following holds:

1. It is the first evaluation after boot or after a configuration change.
2. now - last_trigger >= hearthbeat_interval_seconds, the heartbeat.
3. Both change thresholds are exceeded and the minimum interval has elapsed:
   • |rms - previous_rms| >= absolute_change, and
   • |rms - previous_rms| / previous_rms >= relative_change, and
   • now - last_trigger >= min_trigger_interval_seconds

Requiring both an absolute and a relative threshold avoids re-triggering on sensor noise while the machine is idle, and keeps the device responsive when vibration ramps up.

Configuration fields

These fields are shared by the /configuration HTTP endpoint and the device/<mac>/config/set MQTT topic.

❗️ Two things to watch for:

• hearthbeat_interval_seconds is spelled exactly as shown (with the th). This is the wire key; the misspelling is preserved for backward compatibility.
• scheduler_enabled has a different type per transport: it must be a JSON number (0/1) over HTTP and a JSON boolean (true/false) over MQTT. Sending the wrong type is rejected.

All eight fields are required on every write. A request missing any one of them, or violating any range constraint above, is rejected. HTTP returns 400, MQTT publishes to the corresponding .../rejected topic with the offending field name in the status message.

MQTT Integration

This section explains which topics to use when communicating with Wired Pro over MQTT and how messages should be interpreted.

Actor sends Payload with PayloadType format to Topic

Information

When Wired Pro powers on, it publishes a status message containing basic device information including Firmware Version. This status message can also be retrieved using the following topic:

{
  "Product": "WIREDPRO",
  "Current Running Application": "<WIREDPRO_APPLICATION_NAME>",
  "Version": "<FIRMWARE_VERSION>",
  "Compile Date": "<FIRMWARE_COMPILE_DATE>",
  "Compile Time": "<FIRMWARE_COMPILE_TIME>",
  "ESP-IDF Version": "<ESPRESSIF_IDF_VERSION>",
  "RSSI": <RECEIVED_SIGNAL_STRENGTH_INDICATOR>,
  "Local IP": "<ASSIGNED_LOCAL_IP>",
  "Network MAC": "<NETWORK_MAC_ADDRESS>",
  "Last Reset Reason": "<RESET_REASON>",
  "Runtime MS": <TIME_SINCE_LAST_RESET>,
  "Memory Info": {
    "Total Free Bytes": <TOTAL_FREE_HEAP_BYTES>,
    "Total Allocated Bytes": <TOTAL_ALLOCATED_HEAP_BYTES>,
    "Min Free Bytes": <MIN_FREE_HEAP_BYTES>,
    "Largest Free Bytes": <LARGEST_FREE_HEAP_BLOCK_BYTES>
  }
}

{
  "Product": "WIREDPRO",
  "Current Running Application": "WiredPro-3-1-2",
  "Version": "3.1.2",
  "Compile Date": "Jan 8 2018",
  "Compile Time": "12:00:00",
  "ESP-IDF Version": "v5.1.4",
  "RSSI": -60,
  "Local IP": "192.168.1.161",
  "Network MAC": "00:00:00:00:00:00",
  "Last Reset Reason": "POWERON",
  "Runtime MS": 1231660,
  "Memory Info": {
    "Total Free Bytes": 66576,
    "Total Allocated Bytes": 198868,
    "Min Free Bytes": 60216,
    "Largest Free Bytes": 40960
  }
}

❗️ Memory Info reports heap statistics, not storage capacity.

Firmware Update Over the Air (OTA)

Sensemore devices accept firmware updates over HTTP. To start a firmware update on the device, send a valid binary link to the firmware update topic. Wired Pro downloads the binary from the given URL and starts the firmware update.

❗️ The URL must be plain http://. https:// URLs are rejected, because the TLS stack is reserved for the MQTT connection and the measurement upload. Host the update binary on a plaintext HTTP endpoint reachable from the device.

{
  "url": "http://link.mydomain.com/WiredPro.bin"
}

{
  "status": "OTA accepted"
}

{
  "status": "'url' is not exists or invalid!"
}

{
  "status": "Restarting device due to OTA"
}

Restart

Wired Pro can be restarted using the following topic.

❗️ This is a subscribe-only topic. The device does not publish a confirmation: it simply reboots and republishes its info/accepted message on reconnect.

Device Configuration

Wired Pro’s measurement strategy and configuration can be retrieved using the following topic.

{
  "devices": [
    {
      "mac": "CA:B8:41:XX:XX:XX",
      "status": "connected",
      "version": "3.1.2",
      "device_config": {
        "accelerometer_range": 16,
        "sampling_rate": 25600,
        "sample_size": 50000,
        "scheduler_enabled": true,
        "hearthbeat_interval_seconds": 1800,
        "min_trigger_interval_seconds": 300,
        "relative_change": 0.1,
        "absolute_change": 0.05
      }
    }
  ]
}

MQTT Measurement Configuration

Wired Pro’s measurement configuration can be viewed or modified over MQTT with the following topics. Field semantics and constraints are documented in Measurement Strategy.

{
  "device_mac": "CA:B8:41:XX:XX:XX",
  "device_config": {
    "accelerometer_range": 16,
    "sampling_rate": 25600,
    "sample_size": 50000,
    "scheduler_enabled": true,
    "hearthbeat_interval_seconds": 1800,
    "min_trigger_interval_seconds": 300,
    "relative_change": 0.1,
    "absolute_change": 0.05
  }
}

{
  "device_mac": "CA:B8:41:XX:XX:XX",
  "device_config": {
    "accelerometer_range": 16,
    "sampling_rate": 25600,
    "sample_size": 50000,
    "scheduler_enabled": true,
    "hearthbeat_interval_seconds": 1800,
    "min_trigger_interval_seconds": 300,
    "relative_change": 0.1,
    "absolute_change": 0.05
  }
}

{
  "device_mac": "CA:B8:41:XX:XX:XX",
  "device_config": {
    "accelerometer_range": 16,
    "sampling_rate": 25600,
    "sample_size": 50000,
    "scheduler_enabled": true,
    "hearthbeat_interval_seconds": 1800,
    "min_trigger_interval_seconds": 300,
    "relative_change": 0.1,
    "absolute_change": 0.05
  },
  "status": "Device config updated"
}

{
  "status": "Invalid payload! 'hearthbeat_interval_seconds' is missing or invalid"
}

❗️ scheduler_enabled must be a JSON boolean on this transport.

Measurement

Wired Pro initiates automatic measurements using the smart measurement strategy. It also accepts manual measurements from the Sensemore Lake platform, over MQTT, and over HTTP, based on the configuration set previously. MQTT measurement topics are as follows.

{
  "status": "success"
}

{
  "unixtimestamp": 1734617027,
  "sum_x": -3250.361328125,
  "sum_y": 1844.42333984375,
  "sum_z": -7643.8251953125,
  "mean_x": -0.39005896173346932,
  "mean_y": 0.2213396543674247,
  "mean_z": -0.91729571526611065,
  "peak_x": 0.038008180483469323,
  "peak_y": 0.0423322206325753,
  "peak_z": 0.039735534733889355,
  "peak_to_peak_x": 0.07373046875,
  "peak_to_peak_y": 0.0791015625,
  "peak_to_peak_z": 0.07080078125,
  "clearance_x": 164.31150332922692,
  "clearance_y": 193.61163139253921,
  "clearance_z": 195.9534386192756,
  "crest_x": 7.6797359331360573,
  "crest_y": 8.9543432043988656,
  "crest_z": 9.27409693825784,
  "vrms_x": 0.017510145845642453,
  "vrms_y": 0.050003347640017633,
  "vrms_z": 0.01880110921075584,
  "grms_x": 0.0049491520039737225,
  "grms_y": 0.00472756288945675,
  "grms_z": 0.0042845718562603,
  "kurtosis_x": 17.458915614260821,
  "kurtosis_y": 18.276360133218649,
  "kurtosis_z": 17.757537090857209,
  "skewness_x": 0.65933222563406724,
  "skewness_y": 1.4794854818975853,
  "skewness_z": -1.0167293724548387,
  "temperature": 41.1187515258789,
  "calibrated_sampling_rate": 26513,
  "sampling_rate": 25600,
  "sample_size": 50000,
  "accelerometer_range": 16,
  "measurement_buffer_size": 300000
}

{
  "status": "Measurement done"
}

Units: grms_*, peak_*, peak_to_peak_*, mean_* are in g; vrms_* is in mm/s; temperature is in °C. calibrated_sampling_rate is the measured actual ODR of the accelerometer and is what should be used when interpreting the raw signal. It differs from the requested sampling_rate by the sensor’s internal frequency trim.

Measurement UUIDs generated by the device itself use the prefixes WR-SMRT- (smart measurement) and WR-TRIG- (HTTP trigger).

HTTP Integration

Wired Pro offers HTTP endpoints for retrieving or modifying settings on Wired Pro.

Some endpoints require an authentication token in the header. Endpoints requiring an authentication token in the header are marked with the 🔐 symbol. This token is obtained using the Login endpoint, as shown below.

Login

{
  "password": "<DEVICE_PASSWORD>"
}

{
  "token": "CLjziyTeTzlMsv100mvgkxnTQl1nGYXpQvsIStAW16WrMjxzLvhNTOGhcFFzU38mT8sHKFhxBOm3309qxSmzKIHJux3rUbjVTkywmayA1O05hKaQn9jlY99YMmp1NorF"
}

❗️ The token is returned in the response body of POST /login. There is no GET /login endpoint. Only one token is valid at a time, and logging in again invalidates the previous token, as do /logout and /change_password.

Include your token in the Header

Once the authentication token is obtained via the Login endpoint, it must be included in the header of each HTTP request for 🔐 endpoints, as shown below.

Authorization: CLjziyTeTzlMsv100mvgkxnTQl1nGYXpQvsIStAW16WrMjxzLvhNTOGhcFFzU38mT8sHKFhxBOm3309qxSmzKIHJux3rUbjVTkywmayA1O05hKaQn9jlY99YMmp1NorF

🔐 Logout

Invalidates the current token.

Information

Basic information about the device, including its Firmware Version, can be retrieved using the following HTTP endpoint. This is the only endpoint that does not require a token.

{
  "mac_address": "CA:B8:41:XX:XX:XX",
  "version": "3.1.2",
  "is_network_connected": true,
  "is_internet_connected": true
}

🔐 Change Password

The device’s HTTP and web configuration interface password can be changed using the following HTTP endpoint. On success the current token is invalidated and a new login is required.

{
  "old_password": "<CURRENT_PASSWORD>",
  "new_password": "12345678"
}

{
  "success": true
}

🔐 NTP

Time information is part of the measurement messages sent by Wired Pro. NTP configuration can be retrieved or modified using the following HTTP endpoint.

{
  "sntp_server": "pool.ntp.org"
}

{
  "sntp_server": "pool.ntp.org"
}

{
  "success": true
}

❗️ Hostname only. See the NTP note above.

🔐 Firmware Update Over the Air (OTA)

Uploads a firmware binary directly to the device. The request body is the raw .bin file. The device reboots roughly 3 seconds after responding.

🔐 Restart

Wired Pro can be restarted using the following endpoint.

❗️ This endpoint is POST, not GET.

🔐 Measurement Upload URL

Wired Pro manages measurement uploads itself by publishing metadata over MQTT and transmitting signal binaries via HTTPS. The default binary upload URL is https://core.sensemore.io/measurement, and it can be retrieved or modified using the following endpoint.

{
  "url": "https://core.sensemore.io/measurement"
}

{
  "url": "https://core.sensemore.io/measurement"
}

{
  "success": true
}

🔐 HTTP Measurement Configuration

Wired Pro’s measurement configuration can be viewed or modified with the following endpoint. Field semantics and constraints are documented in Measurement Strategy.

{
  "accelerometer_range": 16,
  "sampling_rate": 25600,
  "sample_size": 50000,
  "scheduler_enabled": 1,
  "hearthbeat_interval_seconds": 1800,
  "min_trigger_interval_seconds": 300,
  "relative_change": 0.1,
  "absolute_change": 0.05
}

{
  "accelerometer_range": 16,
  "sampling_rate": 25600,
  "sample_size": 50000,
  "scheduler_enabled": 1,
  "hearthbeat_interval_seconds": 1800,
  "min_trigger_interval_seconds": 300,
  "relative_change": 0.1,
  "absolute_change": 0.05
}

{
  "success": true
}

❗️ scheduler_enabled must be a JSON number (0/1) on this transport.

🔐 HTTP Measurement

Takes a single measurement using the currently saved configuration and returns its metadata in the response body. This is a local operation: it does not publish to MQTT and does not upload the raw signal binary. Use /trigger-measurement for a full cloud round-trip.

The request blocks until the measurement completes, which at sample_size 50000 and sampling_rate 25600 takes several seconds. Size your client timeout accordingly.

{
  "unixtimestamp": 1734617027,
  "sum_x": -3250.361328125,
  "sum_y": 1844.42333984375,
  "sum_z": -7643.8251953125,
  "mean_x": -0.39005896173346932,
  "mean_y": 0.2213396543674247,
  "mean_z": -0.91729571526611065,
  "peak_x": 0.038008180483469323,
  "peak_y": 0.0423322206325753,
  "peak_z": 0.039735534733889355,
  "peak_to_peak_x": 0.07373046875,
  "peak_to_peak_y": 0.0791015625,
  "peak_to_peak_z": 0.07080078125,
  "clearance_x": 164.31150332922692,
  "clearance_y": 193.61163139253921,
  "clearance_z": 195.9534386192756,
  "crest_x": 7.6797359331360573,
  "crest_y": 8.9543432043988656,
  "crest_z": 9.27409693825784,
  "vrms_x": 0.017510145845642453,
  "vrms_y": 0.050003347640017633,
  "vrms_z": 0.01880110921075584,
  "grms_x": 0.0049491520039737225,
  "grms_y": 0.00472756288945675,
  "grms_z": 0.0042845718562603,
  "kurtosis_x": 17.458915614260821,
  "kurtosis_y": 18.276360133218649,
  "kurtosis_z": 17.757537090857209,
  "skewness_x": 0.65933222563406724,
  "skewness_y": 1.4794854818975853,
  "skewness_z": -1.0167293724548387,
  "temperature": 41.1187515258789,
  "calibrated_sampling_rate": 26513,
  "sampling_rate": 25600,
  "sample_size": 50000,
  "accelerometer_range": 16,
  "measurement_buffer_size": 300000
}

🔐 Trigger Measurement

Takes an immediate measurement and performs the full upload pipeline. It publishes accepted, metadatas and done on the MQTT measurement topics and uploads the raw signal binary to the configured binary URL, exactly as a scheduled smart measurement would.

❗️ This endpoint disables smart measurement as a side effect. It sets scheduler_enabled to false (preserving the other four smart-measurement parameters) before taking the measurement, so periodic measurements stop until you re-enable them via /configuration or the config/set MQTT topic.

The device generates the measurement UUID itself, using the form WR-TRIG-<14 random chars>. Subscribe to sensemore/<GatewayMac>/device/<GatewayMac>/measure/+/# to observe the result.

The request blocks for the duration of the measurement and the binary upload, so expect tens of seconds at large sample sizes over a slow link.

{
  "success": true
}

{
  "success": false,
  "error": "Failed to trigger measurement and upload"
}

RS485 Integration

In RS485 mode Wired Pro is a slave on a half-duplex RS485 bus and never initiates traffic. The gateway is the master. Communication uses the EasyCom framing protocol described below. Wi-Fi, MQTT and the HTTP endpoints are inactive in this mode.

To switch a device between modes, use the Set Operational Mode function on the bus, or the mode selector on the Wi-Fi configuration page. The device persists the choice and reboots into the selected mode.

Electrical and UART Settings

Both the baud rate and the termination resistor state are persisted across reboots. Enable termination only on the two devices at the physical ends of the bus.

Frame Format

Every request and every response is a fixed 256-byte frame, regardless of how much payload it carries. All multi-byte integers are little-endian. The data field is zero-padded.

❗️ The reference C package_t struct carries a trailing is_broadcast flag that is local state and not transmitted. Write exactly 256 bytes on the wire, not sizeof(package_t).

Addressing

address is the 6-byte MAC of the target Wired Pro, in wire order. The MAC is printed on the device label and is also the <GatewayMac> used in Wi-Fi mode.

The broadcast address FF:FF:FF:FF:FF:FF is accepted: every device on the bus executes the request, but no device sends a response. Use it for fire-and-forget commands only. A frame addressed to a different MAC is silently ignored.

CRC

crc16 covers 252 bytes starting at offset 1: the address, status, function, data_size and the complete 243-byte data field including its zero padding. The preamble, the CRC field itself and the postamble are excluded.

The algorithm is a reflected CRC-16 with polynomial 0x1021 (reflected: 0x8408), initial value 0x0000 and final XOR 0xFFFF:

uint16_t easycom_crc16(const uint8_t *data, uint32_t size) {
    uint16_t crc = 0x0000;                       /* note: init 0, not 0xFFFF */
    for (uint32_t i = 0; i < size; i++) {
        crc = crc16_le_table[(crc ^ data[i]) & 0xFF] ^ (crc >> 8);
    }
    return ~crc;
}
/* called as: pkg.crc16 = easycom_crc16(((uint8_t *)&pkg) + 1, 252); */

crc16_le_table is the standard 256-entry reflected CCITT table (0x0000, 0x1189, 0x2312, 0x329b, ...).

Master transaction rules

1. Write the full 256-byte request frame.
2. Read a 256-byte response. The reference master uses a 250 ms UART read timeout.
3. Validate preamble, postamble and CRC. On any mismatch, retry the whole request. the reference master retries up to 5 times before reporting a timeout.
4. The response echoes the request’s function code and carries the device’s own MAC in address, which is how the master identifies which slave answered.

The device flushes its UART receive buffer before transmitting, so the master must not send a new request before it has read the response to the previous one.

If the bus stays completely idle for 60 seconds, the device reinstalls its UART driver. This is transparent to the master, but a frame sent during that instant may be lost and will be recovered by the retry in step 3.

Response Status Codes

❗️ RESPONSE_BUSY is also returned for a well-formed request that simply arrived while the device was busy. Treat it as “retry later”, not as a failure.

Function Codes

All payload structs below are __attribute__((packed)) and little-endian.

0x00 Restart

Reboots the device approximately 1 second after the response is sent.

/* request  */ struct { } restart_request;
/* response */ struct { uint32_t timestamp; } restart_response;   /* not populated, ignore */

0x01 Ping

Health check and firmware version query. This is also how the master polls for measurement completion: while an acquisition is running the status is RESPONSE_BUSY.

/* request */
struct {
    int32_t timestamp;          /* currently ignored by the device */
} ping_request;

/* response */
struct {
    struct { uint8_t major, minor, patch; } version;
    uint32_t timestamp;         /* device uptime in ms */
    uint8_t  rs485_resistor_enabled;
} ping_response;

❗️ The reference header declares ping_request.timestamp as long int, which is 4 bytes on the 32-bit device. A 64-bit master must send it as int32_t, otherwise the frame layout will not match.

Status: RESPONSE_OK when idle, RESPONSE_BUSY while a measurement is running.

0x02 Measure

Starts an acquisition with the given parameters. Returns immediately. The acquisition runs asynchronously. Poll with Ping until the status is no longer RESPONSE_BUSY, then read the results.

/* request */
struct {
    uint32_t sample_size;         /* 100 – 120000 samples per axis */
    uint16_t sampling_rate;       /* 800, 1600, 3200, 6400, 12800, 25600 Hz */
    uint8_t  accelerometer_range; /* 2, 4, 8, 16 g */
    uint8_t  measurement_type;    /* reserved, send 0 */
} start_measurement_request;

/* response */
struct { } start_measurement_response;

❗️ Note the field order: sample_size comes first. Out-of-range parameters are rejected with RESPONSE_ERROR.

Acquisition time is roughly sample_size / sampling_rate seconds plus a few seconds of flash-write and signal-processing overhead.

0x03 Get Chunk

Reads a slice of the raw signal recorded by the last measurement.

/* request */
struct {
    uint32_t offset;    /* byte offset into the raw signal */
    uint32_t size;      /* bytes to read, max 220 */
} get_chunk_request;

/* response */
struct {
    uint32_t size;      /* not populated; use the size you requested */
    uint8_t  data[220];
} get_chunk_response;

❗️ size must not exceed 220 (MAX_CHUNK_SIZE). The device does not validate this bound; a larger request corrupts the response frame.

❗️ The size field of the response is not filled in by the current firmware. The master already knows how many bytes it asked for, so use that value and read data from offset 4 of the response payload.

Raw signal layout. The recording is sample_size × 6 bytes: sample_size frames of three interleaved signed 16-bit little-endian values, in X, Y, Z order.

offset 0    2    4    6    8   10   12  ...
       x0   y0   z0   x1   y1   z1   x2 ...

Convert a raw count to g by multiplying by accelerometer_range × 2 / 65536. For example, 0.00048828125 g/LSB at ±16 g. Use calibrated_sampling_rate from the metadata, not the requested sampling_rate, as the time base.

0x04 Get Metadata

Reads one computed telemetry value from the last measurement, by name.

/* request */
struct {
    char name[32];      /* zero-padded, e.g. "grms_z" */
} metadata_request;

/* response */
struct {
    char   name[32];    /* echoed */
    double value;
} metadata_response;

Valid names are the keys of the metadata object documented in the MQTT Measurement section: sum_*, mean_*, peak_*, peak_to_peak_*, clearance_*, crest_*, vrms_*, grms_*, kurtosis_*, skewness_* (each with an _x, _y or _z suffix), plus unixtimestamp, temperature, calibrated_sampling_rate, sampling_rate, sample_size, accelerometer_range and measurement_buffer_size.

An unknown name returns RESPONSE_ERROR.

0x06 Firmware Begin

Prepares the update partition for a firmware image of the given size. Must be sent before any Firmware Package frame.

/* request  */ struct { uint32_t size; } firmware_begin_request;
/* response */ struct { } firmware_begin_response;

0x07 Firmware Package

Writes one 200-byte slice of the firmware image. Send sequentially until the whole image has been transferred; the device reboots into the new image once the write completes.

/* request */
struct {
    uint32_t offset;
    uint8_t  data[200];
    uint8_t  size;      /* note: after data, not before */
} firmware_package_request;

/* response */
struct { uint32_t timestamp; } firmware_package_response;

0x08 Set Baud Rate

Changes the bus baud rate and persists it.

/* request  */ struct { uint32_t baudrate; } set_baudrate_request;
/* response */ struct { } set_baudrate_response;

❗️ The device switches baud rate before it sends the response. The master must transmit the request at the old rate, then immediately reconfigure its own UART to the new rate to read the acknowledgement. If the master misses it, the device is nevertheless already running at the new rate, so recover by pinging at the new rate rather than by retrying at the old one.

An unsupported value leaves the rate unchanged and returns RESPONSE_ERROR.

0x09 Set RS485 Resistor

Enables or disables the on-board 120 Ω bus termination resistor. Persisted across reboots.

/* request  */ struct { uint8_t rs485_resistor_enabled; } set_rs485_resistor_request;
/* response */ struct { } set_rs485_resistor_response;

0x0A Set Operational Mode

Switches the device between Wi-Fi and RS485 mode. Persisted; the device reboots into the selected mode.

/* request */
struct {
    uint8_t mode;       /* 0 = Wi-Fi mode, 1 = RS485 mode */
} set_operational_mode_request;

/* response */
struct { } set_operational_mode_response;

❗️ Sending mode = 0 takes the device off the RS485 bus. It will only be reachable over Wi-Fi from that point on.

Typical Measurement Sequence

Master                                   Wired Pro
  |-- 0x01 Ping ------------------------->|
  |<-- OK, version 3.1.2 -----------------|

  |-- 0x02 Measure (50000, 25600, 16) --->|
  |<-- OK ---------------------------------|   acquisition starts

  |-- 0x01 Ping ------------------------->|
  |<-- BUSY -------------------------------|   repeat until OK
  |-- 0x01 Ping ------------------------->|
  |<-- OK ---------------------------------|

  |-- 0x04 Get Metadata "sample_size" --->|
  |<-- OK, 50000 --------------------------|
  |-- 0x04 Get Metadata "grms_z" -------->|
  |<-- OK, 0.004284 -----------------------|   repeat per telemetry

  |-- 0x03 Get Chunk (offset 0, 220) ---->|
  |<-- OK, 220 bytes ----------------------|
  |-- 0x03 Get Chunk (offset 220, 220) -->|
  |<-- OK, 220 bytes ----------------------|   repeat until sample_size*6 bytes read
