Fault Tree Analysis (FTA) is a systematic and graphical method used for analyzing and understanding the potential failure modes within a system. It provides a structured approach to assess the relationships between various events and their contribution to a specific undesired outcome, commonly referred to as the “top event.” FTA employs a tree-like diagram to represent the logical combinations of events leading to the occurrence of the top event.
The primary purpose of utilizing Fault Tree Analysis in maintenance is to identify, analyze, and mitigate potential failures within a system or process. By systematically breaking down the events that could lead to a failure, FTA helps maintenance professionals understand the root causes and underlying factors contributing to undesirable outcomes. This proactive approach enables organizations to implement targeted and effective maintenance strategies to prevent or minimize the impact of failures, ultimately improving system reliability and performance.
Importance of Proactive Maintenance Strategies
Proactive maintenance strategies involve pre-emptive actions taken to prevent equipment failures before they occur.
Anticipate Failures: FTA helps identify potential failure modes and weak points in a system, allowing maintenance teams to anticipate and address issues before they lead to actual failures.
Optimize Resource Allocation: By understanding the critical paths and minimal cut sets in the fault tree, organizations can prioritize maintenance efforts and allocate resources more efficiently, focusing on the components or events with the highest impact on system reliability.
Enhance Safety: Proactive maintenance, guided by FTA, contributes to improved safety by identifying and addressing potential hazards and failure scenarios, reducing the risk of accidents and downtime.
Extend Equipment Lifespan: By addressing the root causes of failures, organizations can implement measures to extend the lifespan of equipment, reducing the frequency of breakdowns and the need for costly replacements.
Basics of Fault Tree Analysis
Overview of FTA Methodology
Fault Tree Analysis (FTA) is a systematic and structured method employed to assess and analyze potential failure modes within a complex system. The methodology involves breaking down a top-level undesired event into its contributing components, providing a clear visual representation of the logical relationships between events and their impact on the system’s reliability. FTA is widely used in engineering, risk assessment, and maintenance to enhance system safety and performance.
Components of a Fault Tree
Events:
In Fault Tree Analysis, events represent occurrences or conditions that contribute to the occurrence of the top event. These events can be further classified into two types: basic events and intermediate events. Basic events are the lowest-level events in the tree, while intermediate events represent combinations of basic events or other intermediate events.
Gates (AND, OR):
Gates in a fault tree are logical connectors used to represent the relationships between events. The two primary types of gates are AND gates and OR gates. An AND gate signifies that all connected events must occur for the upper-level event to happen, representing a logical “and” relationship. Conversely, an OR gate indicates that any one of the connected events is sufficient for the upper-level event to occur, symbolizing a logical “or” relationship.
Basic Event and Top Event:
The basic event is the fundamental unit in a fault tree, representing the lowest-level events or conditions that contribute to system failure. On the other hand, the top event is the ultimate undesired outcome that the fault tree aims to analyze. Understanding the relationship between basic events and the top event is critical for identifying the paths leading to system failure.
Logic Symbols in FTA
Fault Tree Analysis employs specific logic symbols to represent the logical relationships between events and gates. The symbols include:
Event Symbol: Represents the occurrence of a specific event in the fault tree.
AND Gate Symbol: Denotes logical “and” relationships, indicating that all connected events must occur for the upper-level event to happen.
OR Gate Symbol: Signifies logical “or” relationships, indicating that any one of the connected events is sufficient for the upper-level event to occur.
These logic symbols enhance the clarity and precision of fault tree diagrams, allowing analysts and maintenance professionals to visually interpret the relationships and dependencies within the system under consideration.

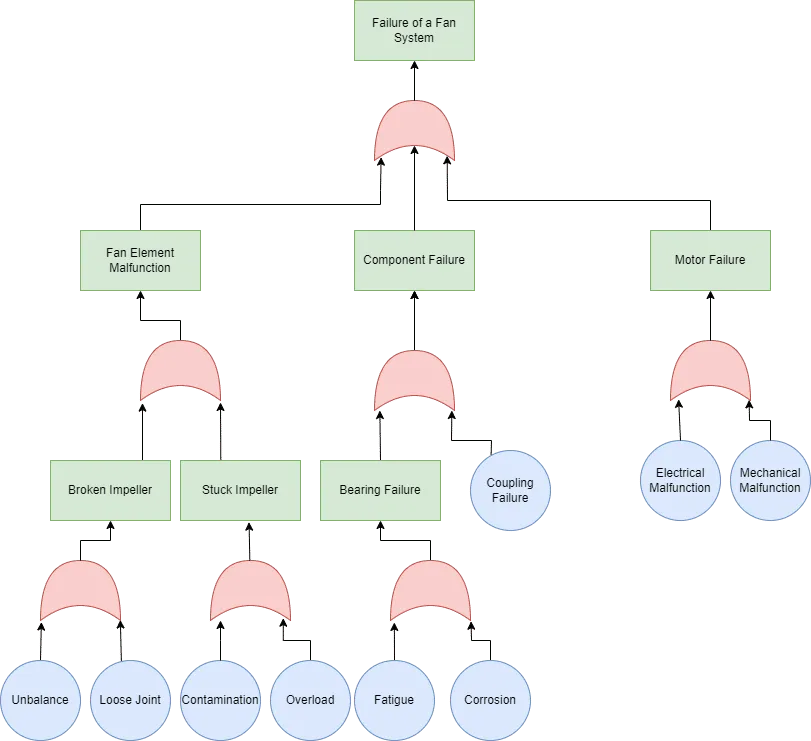

Fig. 1 Fan System Failure Diagram
Application of Fault Tree Analysis in Maintenance
Identifying Potential System Failures
Fault Tree Analysis (FTA) serves as a powerful tool for systematically identifying and understanding potential system failures. This process involves a comprehensive examination of various failure types and an in-depth exploration of failure modes.
Types of Failures:
Equipment Failures:
Equipment failures encompass malfunctions or breakdowns in machinery, components, or systems. FTA aids in pinpointing the root causes of equipment failures, facilitating targeted maintenance interventions.
Human Errors:
Human errors represent mistakes or incorrect actions by individuals involved in the system. FTA helps analyze how human errors contribute to system failures, allowing for the implementation of preventive measures and training programs.
Environmental Factors:
Environmental factors, such as extreme weather conditions or natural disasters, can impact the reliability of systems. FTA assists in evaluating the potential effects of environmental factors on system performance and devising strategies to mitigate associated risks.
Understanding Failure Modes:
FTA exploring the various ways in which events and conditions can lead to system breakdowns. This detailed understanding is crucial for developing effective maintenance strategies that address the specific vulnerabilities identified in the fault tree analysis.
Risk Assessment and Probability Analysis
Another significant application of FTA in maintenance lies in the realm of risk assessment and probability analysis. This involves a quantitative and qualitative evaluation of the likelihood and consequences of identified failure scenarios.
Quantitative vs. Qualitative Analysis:
FTA allows for both quantitative and qualitative analyses of failure probabilities. Quantitative analysis involves assigning numerical values to probabilities, providing a more precise assessment. Qualitative analysis, while less precise, offers valuable insights into the relative likelihood of different failure events and is often employed when precise data is unavailable.
Importance of Probability Estimation:
Probability estimation is a critical aspect of FTA in maintenance. By assigning probabilities to various events, maintenance professionals can prioritize their efforts, focusing on high-probability scenarios that pose significant risks to system reliability. This informed prioritization enhances the efficiency of maintenance interventions.
Reliability-Centered Maintenance (RCM)
The integration of Fault Tree Analysis into Reliability-Centered Maintenance (RCM) represents a strategic approach to maintenance planning that emphasizes system reliability and performance.
Incorporating FTA into RCM:
FTA provides valuable input to the RCM process by identifying critical failure paths and key contributing events. This information informs the development of maintenance strategies tailored to address specific failure modes and enhance overall system reliability.
Enhancing Maintenance Planning:
By incorporating FTA into RCM, maintenance planning becomes more targeted and proactive. Maintenance activities are aligned with the identified risks and critical paths, optimizing resource allocation and minimizing the likelihood of system failures. This integration ensures that maintenance efforts are strategic, cost-effective, and aligned with overarching reliability goals.
What are the steps of FTA?
Defining the fault to analyze:
Defining a critical fault is essential to conduct a FTA. Undesired event, a fault, must be chosen by taking criticality, complexity and impact on the system into consideration. This is a vital stage since the top element in the FTA is unique and analysis conducted specifically for one failure.
Understanding the system completely:
Once the focus point, failure, is chosen any related element should be studied thoroughly. Actions, subsystems, components, environmental elements etc. must be noted to obtain an understanding of the failure alongside any related input. Occurrence possibilities of the events are calculated and indicated for every event related to the undesired event.
Create and evaluate the fault tree:
After studying the system, construction of the tree representation begins. Every event and state leading to undesired state of fault is listed and existing relations between the conditions are represented by using AND or OR gates. Fault tree is evaluated for any improvements and all the possible hazards resulting in the undesired event is obtained.
Taking action according to the fault tree analysis:
After the Fault Tree representation is complete and all the necessary studies are conducted actions must be taken to increase the reliability of the system and to decrease the probability of potential hazardous states leading to the undesired event.
An Example of FTA
In this example, failure of a fan system is determined as the undesired state. Main possible causes of the malfunction are Fan Element Malfunction, Component Failure and Motor Failure. All of these sub level malfunctions like Bearing Failure, Motor Failure, Broken and Stuck Impellar are taken into evaluation and mapped on the Fault Tree Diagram.

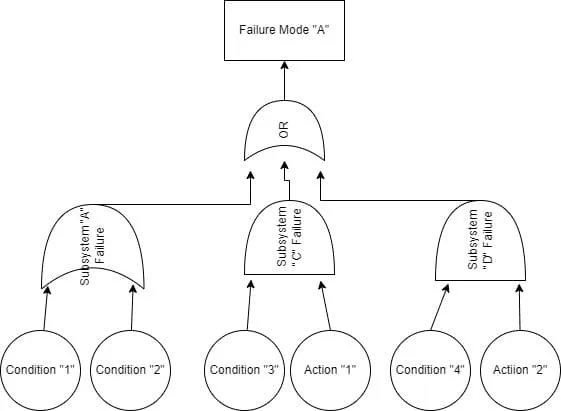

Fig. 2 Failure Mode Diagram
Integration with Modern Maintenance Technologies
Role of Predictive Maintenance
The integration of Fault Tree Analysis (FTA) with predictive maintenance strategies is instrumental in enhancing the efficiency and effectiveness of maintenance programs. Predictive Maintenance (PdM) leverages advanced data analytics and sensor technologies to monitor the condition of equipment in real-time. The role of FTA in this context involves:
Identifying Potential Failure Modes:
FTA contributes to predictive maintenance by aiding in the identification of potential failure modes and critical events. By understanding the root causes of failures through FTA, predictive maintenance systems can be configured to monitor specific parameters that are indicative of these failure modes.
Data-Driven Decision-Making:
FTA provides a structured framework for analyzing and interpreting data collected through predictive maintenance sensors. The analysis of historical and real-time data helps maintenance professionals make data-driven decisions, allowing for the timely identification of emerging issues and proactive interventions.
Optimizing Predictive Maintenance Alarms:
FTA assists in optimizing the configuration of predictive maintenance alarms. By aligning alarms with the critical events identified in the fault tree, maintenance teams can receive timely notifications when specific conditions indicative of potential failures are detected, enabling preventive actions.
Use of IoT and Sensors
The advent of the Internet of Things (IoT) and sensor technologies has revolutionized maintenance practices by providing real-time insights into the performance of equipment and systems. FTA seamlessly integrates with these technologies to further enhance maintenance capabilities.
Continuous Monitoring:
FTA supports the integration of IoT devices and sensors for continuous monitoring of critical parameters. By incorporating real-time data into the fault tree analysis, maintenance professionals can gain a dynamic understanding of system health and identify potential failure scenarios as they evolve.
Event Triggering and Alerts:
FTA guides the deployment of IoT devices to trigger events and generate alerts based on the identified critical events in the fault tree. This proactive approach ensures that maintenance teams are notified of potential issues in a timely manner, allowing for rapid response and preventive actions.
Feedback Loop for Continuous Improvement:
The integration of FTA with IoT and sensors establishes a feedback loop for continuous improvement. Data collected from sensors can be analyzed using the fault tree framework, and insights gained can inform updates to the fault tree model, refining the accuracy and relevance of the analysis over time.
Data Analytics for Enhanced FTA
Pattern Recognition and Anomaly Detection:
FTA benefits from data analytics by incorporating pattern recognition and anomaly detection algorithms. These tools enable the identification of subtle patterns and deviations in data, contributing to a more nuanced understanding of potential failure modes and refining the fault tree model.
Predictive Modeling:
Data analytics techniques, such as machine learning, facilitate the development of predictive models within the fault tree framework. These models can forecast the likelihood of specific events and failure scenarios based on historical data, enabling a proactive and anticipatory approach to maintenance.
Dynamic Updating of Fault Trees:
The integration of data analytics allows for the dynamic updating of fault trees. As new data becomes available, the fault tree model can be adjusted to reflect evolving conditions and ensure that maintenance strategies remain aligned with the most current insights into system reliability.
